RestAPI
从 19.5.10 版本起，pyDAL 包含一个名为 RestAPI 的 restful API [CIT0801] 。它的灵感来自 GraphQL [CIT0802] ，虽然由于功能较弱，它们并不完全相同，但 RestAPI 符合 py4web 的精神，因为它更实用、更易于使用。
与 GraphQL 一样，RestAPI 允许客户端使用 GET 方法查询信息，并允许指定有关响应格式的一些详细信息（要遵循哪些引用，以及如何对数据进行非规范化）。与 GraphQL 不同之处，它允许服务器指定策略并限制允许哪些查询和不允许哪些查询。可以根据用户和服务器的状态对每个请求进行动态评估。
顾名思义，RestAPI 允许所有标准方法：GET、POST、PUT 和 DELETE 。对于单个表和单个字段，可以根据策略启用或禁用它们中的任意一个。
备注
由于这是一项新功能，技术规范可能会发生变化。
在下面的示例中，我们假设有一个叫做 “superheroes” 的简单应用：
# in superheroes/__init__.py
import os
from py4web import action, request, Field, DAL
from pydal.restapi import RestAPI, Policy
# database definition
DB_FOLDER = os.path.join(os.path.dirname(__file__), 'databases')
if not os.path.isdir(DB_FOLDER):
os.mkdir(DB_FOLDER)
db = DAL('sqlite://storage.sqlite', folder=DB_FOLDER)
db.define_table(
'person',
Field('name'),
Field('job'))
db.define_table(
'superhero',
Field('name'),
Field('real_identity', 'reference person'))
db.define_table(
'superpower',
Field('description'))
db.define_table(
'tag',
Field('superhero', 'reference superhero'),
Field('superpower', 'reference superpower'),
Field('strength', 'integer'))
# add example entries in db
if not db(db.person).count():
db.person.insert(name='Clark Kent', job='Journalist')
db.person.insert(name='Peter Park', job='Photographer')
db.person.insert(name='Bruce Wayne', job='CEO')
db.superhero.insert(name='Superman', real_identity=1)
db.superhero.insert(name='Spiderman', real_identity=2)
db.superhero.insert(name='Batman', real_identity=3)
db.superpower.insert(description='Flight')
db.superpower.insert(description='Strength')
db.superpower.insert(description='Speed')
db.superpower.insert(description='Durability')
db.tag.insert(superhero=1, superpower=1, strength=100)
db.tag.insert(superhero=1, superpower=2, strength=100)
db.tag.insert(superhero=1, superpower=3, strength=100)
db.tag.insert(superhero=1, superpower=4, strength=100)
db.tag.insert(superhero=2, superpower=2, strength=50)
db.tag.insert(superhero=2, superpower=3, strength=75)
db.tag.insert(superhero=2, superpower=4, strength=10)
db.tag.insert(superhero=3, superpower=2, strength=80)
db.tag.insert(superhero=3, superpower=3, strength=20)
db.tag.insert(superhero=3, superpower=4, strength=70)
db.commit()
# policy definitions
policy = Policy()
policy.set('superhero', 'GET', authorize=True, allowed_patterns=['*'])
policy.set('*', 'GET', authorize=True, allowed_patterns=['*'])
# for security reasons we disabled here all methods but GET at the policy level,
# to enable any of them just set authorize = True
policy.set('*', 'PUT', authorize=False)
policy.set('*', 'POST', authorize=False)
policy.set('*', 'DELETE', authorize=False)
@action('api/<tablename>/', method = ['GET', 'POST'])
@action('api/<tablename>/<rec_id>', method = ['GET', 'PUT', 'DELETE'])
@action.uses(db)
def api(tablename, rec_id=None):
return RestAPI(db, policy)(request.method,
tablename,
rec_id,
request.GET,
request.POST
)
@action("index")
def index():
return "RestAPI example"
RestAPI 的 policy 和 action
该策略是针对每个表（或 * 代表的所有表）和每个方法的。 authorize 可以是 True（允许）、False（拒绝），也可以是返回 True/False 的带有签名的函数（ (method, tablename, record_id, get_vars, post_vars)）。对于 GET 策略，可以指定一个允许的查询模式列表（ * 代表所有模式）。查询模式将与查询字符串中的键进行匹配。
上述 action 公开了：
/superheroes/api/{tablename}
/superheroes/api/{tablename}/{rec_id}

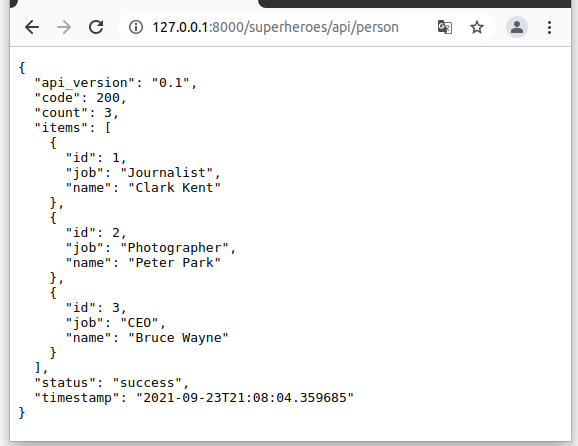

结果可以直接用浏览器看到，呈现为 JSON 格式。作为示例，让我们看一下 person 表：

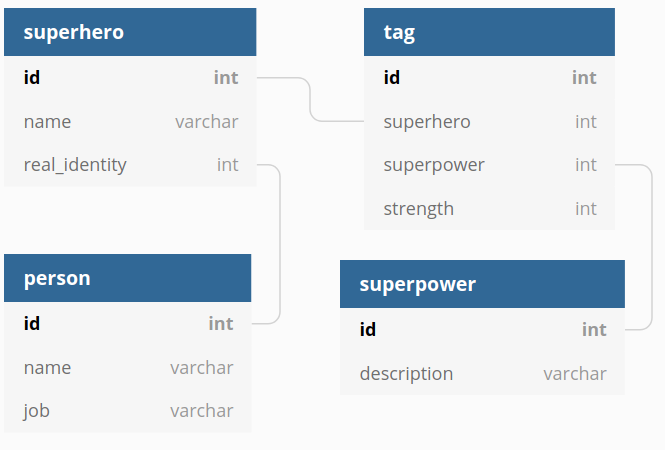

superhero 的数据库的示意图应该可以帮助你理解代码：
备注
请记住， request.POST 只包含使用 regular HTML-form 或 JavaScript FormData 对象发送的表单数据。
RestAPI GET
一般查询的格式为 {something}.eq=value ，其中 eq= 表示“相等”， gt= 表示“大于”，以此类推。表达式前面可以加上 not.
{something} 可以是：
表中的字段名称的查询，示例如下：
所有被称为 “Superman” 的超级英雄
/superheroes/api/superhero?name.eq=Superman
被查询的表引用的表的字段的名称，示例如下：
所有真实身份是 “Clark Kent” 的超级英雄
/superheroes/api/superhero?real_identity.name.eq=Clark Kent
引用被查询表的字段的名称，如下所示
所有拥有超级力量大于 90 的超级英雄
/superheroes/api/superhero?superhero.tag.strength.gt=90
（这里的
tag是链接表的名称，前面的superhero是引用所选表的字段的名称，strength是用于过滤的字段名称）由多对多链接表引用的表字段，如下所示：
所有拥有飞行能力的超级英雄
/superheroes/api/superhero?superhero.tag.superpower.description.eq=Flight
提示
理解上述语法的关键是将其解读为：
当所述表 tag 的 superpower 字段指向的表中 description 字段等于 “Flight” 时， “查询记录表 tag 中的 superhero 字段引用的 superhero 表中的记录。”
该查询允许使用其他修饰符，例如：
@offset=10
@limit=10
@order=name
@model=true
@lookup=real_identity
前三个是显而易见的。 @model 返回数据库模型的 JSON 描述。 @lookup 对链接字段进行非规范化处理。
RestAPI 实例
以下是一些实际例子：
URL:
/superheroes/api/superhero
输出：
{
"count": 3,
"status": "success",
"code": 200,
"items": [
{
"real_identity": 1,
"name": "Superman",
"id": 1
},
{
"real_identity": 2,
"name": "Spiderman",
"id": 2
},
{
"real_identity": 3,
"name": "Batman",
"id": 3
}
],
"timestamp": "2019-05-19T05:38:00.132635",
"api_version": "0.1"
}
URL:
/superheroes/api/superhero?@model=true
输出：
{
"count": 3,
"status": "success",
"code": 200,
"items": [
{
"real_identity": 1,
"name": "Superman",
"id": 1
},
{
"real_identity": 2,
"name": "Spiderman",
"id": 2
},
{
"real_identity": 3,
"name": "Batman",
"id": 3
}
],
"timestamp": "2021-01-04T07:03:38.466030",
"model": [
{
"regex": "[1-9]\\d*",
"name": "id",
"default": null,
"required": false,
"label": "Id",
"post_writable": true,
"referenced_by": [
"tag.superhero"
],
"unique": false,
"type": "id",
"options": null,
"put_writable": true
},
{
"regex": null,
"name": "name",
"default": null,
"required": false,
"label": "Name",
"post_writable": true,
"unique": false,
"type": "string",
"options": null,
"put_writable": true
},
{
"regex": null,
"name": "real_identity",
"default": null,
"required": false,
"label": "Real Identity",
"post_writable": true,
"references": "person",
"unique": false,
"type": "reference",
"options": null,
"put_writable": true
}
],
"api_version": "0.1"
}
URL:
/superheroes/api/superhero?@lookup=real_identity
输出：
{
"count": 3,
"status": "success",
"code": 200,
"items": [
{
"real_identity": {
"name": "Clark Kent",
"job": "Journalist",
"id": 1
},
"name": "Superman",
"id": 1
},
{
"real_identity": {
"name": "Peter Park",
"job": "Photographer",
"id": 2
},
"name": "Spiderman",
"id": 2
},
{
"real_identity": {
"name": "Bruce Wayne",
"job": "CEO",
"id": 3
},
"name": "Batman",
"id": 3
}
],
"timestamp": "2019-05-19T05:38:00.178974",
"api_version": "0.1"
}
URL:
/superheroes/api/superhero?@lookup=identity:real_identity
（将 real_identity 反规范化并重命名为 identity ）
输出：
{
"count": 3,
"status": "success",
"code": 200,
"items": [
{
"real_identity": 1,
"name": "Superman",
"id": 1,
"identity": {
"name": "Clark Kent",
"job": "Journalist",
"id": 1
}
},
{
"real_identity": 2,
"name": "Spiderman",
"id": 2,
"identity": {
"name": "Peter Park",
"job": "Photographer",
"id": 2
}
},
{
"real_identity": 3,
"name": "Batman",
"id": 3,
"identity": {
"name": "Bruce Wayne",
"job": "CEO",
"id": 3
}
}
],
"timestamp": "2019-05-19T05:38:00.123218",
"api_version": "0.1"
}
URL:
/superheroes/api/superhero?@lookup=identity!:real_identity[name,job]
（对 real_identity 进行非规范化 [但仅限于字段 name 和 job]，用 identity 前缀折叠）
输出：
{
"count": 3,
"status": "success",
"code": 200,
"items": [
{
"name": "Superman",
"identity.job": "Journalist",
"identity.name": "Clark Kent",
"id": 1
},
{
"name": "Spiderman",
"identity.job": "Photographer",
"identity.name": "Peter Park",
"id": 2
},
{
"name": "Batman",
"identity.job": "CEO",
"identity.name": "Bruce Wayne",
"id": 3
}
],
"timestamp": "2021-01-04T07:03:38.559918",
"api_version": "0.1"
}
URL:
/superheroes/api/superhero?@lookup=superhero.tag
输出：
{
"count": 3,
"status": "success",
"code": 200,
"items": [
{
"real_identity": 1,
"name": "Superman",
"superhero.tag": [
{
"strength": 100,
"superhero": 1,
"id": 1,
"superpower": 1
},
{
"strength": 100,
"superhero": 1,
"id": 2,
"superpower": 2
},
{
"strength": 100,
"superhero": 1,
"id": 3,
"superpower": 3
},
{
"strength": 100,
"superhero": 1,
"id": 4,
"superpower": 4
}
],
"id": 1
},
{
"real_identity": 2,
"name": "Spiderman",
"superhero.tag": [
{
"strength": 50,
"superhero": 2,
"id": 5,
"superpower": 2
},
{
"strength": 75,
"superhero": 2,
"id": 6,
"superpower": 3
},
{
"strength": 10,
"superhero": 2,
"id": 7,
"superpower": 4
}
],
"id": 2
},
{
"real_identity": 3,
"name": "Batman",
"superhero.tag": [
{
"strength": 80,
"superhero": 3,
"id": 8,
"superpower": 2
},
{
"strength": 20,
"superhero": 3,
"id": 9,
"superpower": 3
},
{
"strength": 70,
"superhero": 3,
"id": 10,
"superpower": 4
}
],
"id": 3
}
],
"timestamp": "2019-05-19T05:38:00.201988",
"api_version": "0.1"
}
URL:
/superheroes/api/superhero?@lookup=superhero.tag.superpower
输出：
{
"count": 3,
"status": "success",
"code": 200,
"items": [
{
"real_identity": 1,
"name": "Superman",
"superhero.tag.superpower": [
{
"strength": 100,
"superhero": 1,
"id": 1,
"superpower": {
"id": 1,
"description": "Flight"
}
},
{
"strength": 100,
"superhero": 1,
"id": 2,
"superpower": {
"id": 2,
"description": "Strength"
}
},
{
"strength": 100,
"superhero": 1,
"id": 3,
"superpower": {
"id": 3,
"description": "Speed"
}
},
{
"strength": 100,
"superhero": 1,
"id": 4,
"superpower": {
"id": 4,
"description": "Durability"
}
}
],
"id": 1
},
{
"real_identity": 2,
"name": "Spiderman",
"superhero.tag.superpower": [
{
"strength": 50,
"superhero": 2,
"id": 5,
"superpower": {
"id": 2,
"description": "Strength"
}
},
{
"strength": 75,
"superhero": 2,
"id": 6,
"superpower": {
"id": 3,
"description": "Speed"
}
},
{
"strength": 10,
"superhero": 2,
"id": 7,
"superpower": {
"id": 4,
"description": "Durability"
}
}
],
"id": 2
},
{
"real_identity": 3,
"name": "Batman",
"superhero.tag.superpower": [
{
"strength": 80,
"superhero": 3,
"id": 8,
"superpower": {
"id": 2,
"description": "Strength"
}
},
{
"strength": 20,
"superhero": 3,
"id": 9,
"superpower": {
"id": 3,
"description": "Speed"
}
},
{
"strength": 70,
"superhero": 3,
"id": 10,
"superpower": {
"id": 4,
"description": "Durability"
}
}
],
"id": 3
}
],
"timestamp": "2019-05-19T05:38:00.322494",
"api_version": "0.1"
}
URL （这是一行，为了可读性而拆分）：
/superheroes/api/superhero?
@lookup=powers:superhero.tag[strength].superpower[description]
输出：
{
"count": 3,
"status": "success",
"code": 200,
"items": [
{
"real_identity": 1,
"name": "Superman",
"powers": [
{
"strength": 100,
"superpower": {
"description": "Flight"
}
},
{
"strength": 100,
"superpower": {
"description": "Strength"
}
},
{
"strength": 100,
"superpower": {
"description": "Speed"
}
},
{
"strength": 100,
"superpower": {
"description": "Durability"
}
}
],
"id": 1
},
{
"real_identity": 2,
"name": "Spiderman",
"powers": [
{
"strength": 50,
"superpower": {
"description": "Strength"
}
},
{
"strength": 75,
"superpower": {
"description": "Speed"
}
},
{
"strength": 10,
"superpower": {
"description": "Durability"
}
}
],
"id": 2
},
{
"real_identity": 3,
"name": "Batman",
"powers": [
{
"strength": 80,
"superpower": {
"description": "Strength"
}
},
{
"strength": 20,
"superpower": {
"description": "Speed"
}
},
{
"strength": 70,
"superpower": {
"description": "Durability"
}
}
],
"id": 3
}
],
"timestamp": "2019-05-19T05:38:00.309903",
"api_version": "0.1"
}
URL （这是一行，为了可读性而拆分）：
/superheroes/api/superhero?
@lookup=powers!:superhero.tag[strength].superpower[description]
输出：
{
"count": 3,
"status": "success",
"code": 200,
"items": [
{
"real_identity": 1,
"name": "Superman",
"powers": [
{
"strength": 100,
"description": "Flight"
},
{
"strength": 100,
"description": "Strength"
},
{
"strength": 100,
"description": "Speed"
},
{
"strength": 100,
"description": "Durability"
}
],
"id": 1
},
{
"real_identity": 2,
"name": "Spiderman",
"powers": [
{
"strength": 50,
"description": "Strength"
},
{
"strength": 75,
"description": "Speed"
},
{
"strength": 10,
"description": "Durability"
}
],
"id": 2
},
{
"real_identity": 3,
"name": "Batman",
"powers": [
{
"strength": 80,
"description": "Strength"
},
{
"strength": 20,
"description": "Speed"
},
{
"strength": 70,
"description": "Durability"
}
],
"id": 3
}
],
"timestamp": "2019-05-19T05:38:00.355181",
"api_version": "0.1"
}
URL （这是一行，为了可读性而拆分）：
/superheroes/api/superhero?
@lookup=powers!:superhero.tag[strength].superpower[description],
identity!:real_identity[name]
输出：
{
"count": 3,
"status": "success",
"code": 200,
"items": [
{
"name": "Superman",
"identity.name": "Clark Kent",
"powers": [
{
"strength": 100,
"description": "Flight"
},
{
"strength": 100,
"description": "Strength"
},
{
"strength": 100,
"description": "Speed"
},
{
"strength": 100,
"description": "Durability"
}
],
"id": 1
},
{
"name": "Spiderman",
"identity.name": "Peter Park",
"powers": [
{
"strength": 50,
"description": "Strength"
},
{
"strength": 75,
"description": "Speed"
},
{
"strength": 10,
"description": "Durability"
}
],
"id": 2
},
{
"name": "Batman",
"identity.name": "Bruce Wayne",
"powers": [
{
"strength": 80,
"description": "Strength"
},
{
"strength": 20,
"description": "Speed"
},
{
"strength": 70,
"description": "Durability"
}
],
"id": 3
}
],
"timestamp": "2021-01-04T07:31:34.974953",
"api_version": "0.1"
}
URL:
/superheroes/api/superhero?name.eq=Superman
输出：
{
"count": 1,
"status": "success",
"code": 200,
"items": [
{
"real_identity": 1,
"name": "Superman",
"id": 1
}
],
"timestamp": "2019-05-19T05:38:00.405515",
"api_version": "0.1"
}
URL:
/superheroes/api/superhero?real_identity.name.eq=Clark Kent
输出：
{
"count": 1,
"status": "success",
"code": 200,
"items": [
{
"real_identity": 1,
"name": "Superman",
"id": 1
}
],
"timestamp": "2019-05-19T05:38:00.366288",
"api_version": "0.1"
}
URL:
/superheroes/api/superhero?not.real_identity.name.eq=Clark Kent
输出：
{
"count": 2,
"status": "success",
"code": 200,
"items": [
{
"real_identity": 2,
"name": "Spiderman",
"id": 2
},
{
"real_identity": 3,
"name": "Batman",
"id": 3
}
],
"timestamp": "2019-05-19T05:38:00.451907",
"api_version": "0.1"
}
URL:
/superheroes/api/superhero?superhero.tag.superpower.description=Flight
输出：
{
"count": 1,
"status": "success",
"code": 200,
"items": [
{
"real_identity": 1,
"name": "Superman",
"id": 1
}
],
"timestamp": "2019-05-19T05:38:00.453020",
"api_version": "0.1"
}
RestAPI 的响应
所有 RestAPI 响应都有以下字段：
- api_version:
RestAPI 的版本号
- timestamp:
ISO 8601 格式的日期时间（YYYY-MM-DDThh:mm:ss[.mmm]TZD）
- status:
RestAPI 状态（即 "success" 或 "error" ）
- code:
HTTP 状态
其他可选字段包括：
- count:
匹配的总数量（不是返回的总数量），用于 GET
- items:
针对 GET 的响应数据项目
- errors:
通常是验证错误
- models:
通常 status != "success" 时，才有此项
- message:
有关错误的详细信息
