Chapter 11: Advanced Features, Layout Customization, and Troubleshooting

Advanced features Overview

As you scale PSWriteHTML across enterprise environments, building reports evolves beyond basic tables into crafting high-density, visually appealing dashboards.

This chapter covers modern UI components like InfoCards, dynamic layout density controls, advanced JavaScript/CSS customization, performance tuning, and diagnostic troubleshooting.

Modern Dashboard Components & Styling

Key Metrics with New-HTMLInfoCard

To display high-level KPIs, operational counters, or status summaries at the top of a dashboard, use New-HTMLInfoCard . InfoCards support icons (emojis, FontAwesome), custom colors, subtitle text, and distinct visual styles:

  • -Styles: Standard, Compact, Fixed, Classic, NoIcon.

  • -ShadowIntensity: None, Subtle, Normal, Bold, ExtraBold, Custom (with -CustomShadowColor).

  • -Icon: Icon to display on the card. Can be an emoji (like πŸ‘₯, πŸ”’, πŸ’ͺ).

  • -IconSolid, -IconRegular, -IconBrands: Use FontAwesome icons with different styles



New-HTML -Title "Executive Security Summary" -Show {
    New-HTMLTab -Name "Overview" -IconSolid "user-shield" {

        # Section wrapping InfoCards with Comfortable spacing
        New-HTMLSection -HeaderText "Key Security Metrics" -Density Comfortable {

            New-HTMLInfoCard -Title "Identity Protection" `
                            -Number "Active" `
                            -Subtitle "0 Risky Users Flagged" `
                            -Icon "Shield"  `
                            -IconColor '#0078d4'

            New-HTMLInfoCard -Title "Failed Logins (24h)" `
                            -Number "142" `
                            -Subtitle "Within expected threshold" `
                            -Icon "Error" `
                            -IconColor '#d9534f'

            New-HTMLInfoCard -Title "MFA Enrollment" `
                            -Number "98.4%" `
                            -Subtitle "+1.2% from last week" `
                            -Icon "Report" `
                            -IconColor '#5cb85c'
        }
    }
}

This is the result:

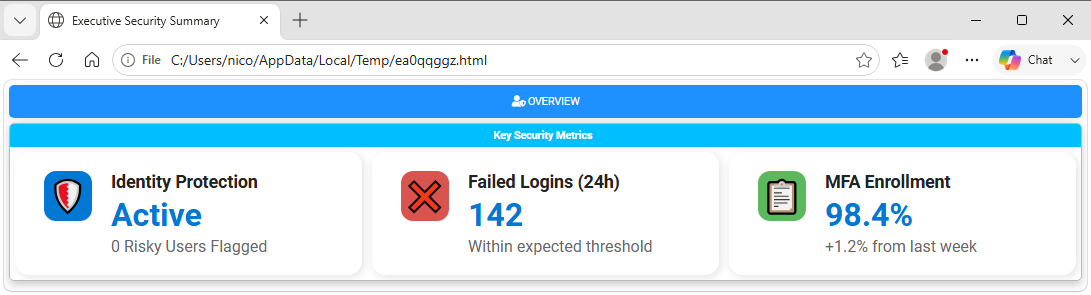

Rendered InfoCard Example

Fig. 25 Dashboard information cards displaying high-level operational metrics.

Controlling Layout Density with -Density

To handle responsive grid layouts without manually computing pixel widths or complex CSS flexbox rules, use the -Density parameter on New-HTMLSection or New-HTMLPanel. This automatically enables responsive wrapping and adjusts card/element margins:

  • ``Spacious``: Generous padding and whitespace; ideal for high-level executive summaries.

  • ``Comfortable``: Balanced spacing suited for standard multi-card layouts.

  • ``Compact``: Reduced margins for viewing dense telemetry datasets.

  • ``Dense`` / ``VeryDense``: Tight alignment maximizing screen real estate for NOC display walls.

New-HTMLSection -HeaderText "NOC Operations Grid" -Wrap wrap -Density VeryDense {
    # InfoCards or panels rendered here auto-wrap tightly to fit dense monitor setups
    foreach ($Metric in $NocMetrics) {
        New-HTMLInfoCard -Title $Metric.Name -Number $Metric.Value -Icon "server"
    }
}

Advanced Scripting Patterns

Dynamic Component Loop Generation

Instead of hardcoding every tab, section, or table, generate PSWriteHTML layout components dynamically using standard PowerShell loops (foreach, for).

$Servers = @('DC01', 'DC02', 'SQL01', 'WEB01')

New-HTML -Title "Multi-Server Assessment" -FilePath "MultiServer.html" {
    foreach ($Server in $Servers) {
        New-HTMLTab -Name $Server -IconSolid "server" {
            New-HTMLSection -HeaderText "Diagnostic Summary for $Server" -Density Compact {
                New-HTMLInfoCard -Title "Health" -Number "OK" -Icon "check-circle"
                New-HTMLPanel {
                    New-HTMLText -Text "Detailed diagnostic metrics captured for node: <b>$Server</b>"
                }
            }
        }
    }
}

Embedding Raw Client-Side JavaScript

Inject custom JavaScript directly into the document using the -UseJavaScriptLinks parameter on New-HTML to handle bespoke interactions:

$ScriptBlock = @"
    document.addEventListener('DOMContentLoaded', function() {
        console.log('PSWriteHTML Dashboard Execution Initialized.');
    });
"@

New-HTML -Title "Custom Scripting" -FilePath "Scripting.html" -UseJavaScriptLinks $ScriptBlock {
    New-HTMLTab -Name "Main" {
        New-HTMLSection -HeaderText "Console Verification" {
            New-HTMLPanel {
                New-HTMLText -Text "Open browser developer console (F12) to inspect client execution logs."
            }
        }
    }
}

Correlating Tables and Charts with Events (New-ChartEvent, New-DiagramEvent, and New-TableEvent)

Interactive charts can be connected to a table so that selecting a chart value searches for and highlights the matching table rows. This is implemented using New-ChartEvent or New-DiagramEvent cmdlets with the -DataTableID parameter on New-HTMLTable and the -ID and -ColumnID parameters on the chart or diagram event. The table must be rendered before the chart or diagram for proper correlation.

The parameters used to connect the components are:

  • ``-ID``: Identifies the target table when used with New-DiagramEvent. It is also an alias for -TableID in

    New-TableEvent.

  • ``-ColumnID``: Selects the zero-based table column used to match a chart or diagram event. The number follows the property

    order passed to -DataTable, with the first property being column 0. For example, if the table is built from Select-Object Name, Status, then Name is column 0 and Status is column 1.

  • ``-DataTable``: Supplies the objects or records that New-HTMLTable renders as rows.

  • ``-DataTableID``: Assigns a stable identifier to the table. Use the same value in New-ChartEvent or -ID on a related

    diagram/table event.

  • ``-DataStore``: Selects how New-HTMLTable provides its data to the page. The supported values are HTML (the

    default, renders the table data directly as HTML), JavaScript (embeds the data in the page as JavaScript and is required for browser-side chart or diagram correlation), and AjaxJSON (loads the data from a JSON endpoint for hosted/server-side tables). Use JavaScript for complex scenarios with client-side data; AjaxJSON requires a -FilePath on New-HTML and a web server that can serve the generated JSON data.

Give the table a stable identifier with -DataTableID and pass the same value to New-ChartEvent -DataTableID. The -ColumnID parameter is zero-based and identifies the table column used for matching, so it must follow the order of the properties supplied to -DataTable. Table and diagram event commands also use -ID (an alias for the target table ID) and -ColumnID. This event ID is separate from the chart’s own -Id parameter.

Emit the table before the chart event consumer and use -DataStore JavaScript when the chart should correlate with client-side table data. For a diagram, place New-DiagramEvent -ID $TableID -ColumnID 0 inside New-HTMLDiagram; -ID identifies the table and -ColumnID selects the table column used by the diagram event.

The following example creates a pie chart and a table from the same data. Clicking a pie slice searches the first table column, Name, because it is column 0 in the selected property order:

$Data = @(
    [PSCustomObject]@{ Name = 'Alpha'; Value = 12 }
    [PSCustomObject]@{ Name = 'Beta';  Value = 18 }
    [PSCustomObject]@{ Name = 'Gamma'; Value = 9 }
)

$TableID = 'ChartTable'

New-HTML -TitleText 'Chart and Table' -FilePath "$PWD\chart-table.html" -Online -Show {
    New-HTMLTable -DataTable $Data -DataTableID $TableID -DataStore HTML

    New-HTMLChart -Title 'Values by Name' {
        foreach ($Item in $Data) {
            New-ChartPie -Name $Item.Name -Value $Item.Value
        }

        New-ChartEvent -DataTableID $TableID -ColumnID 0
    }
}

It produces the following interactive correlation:

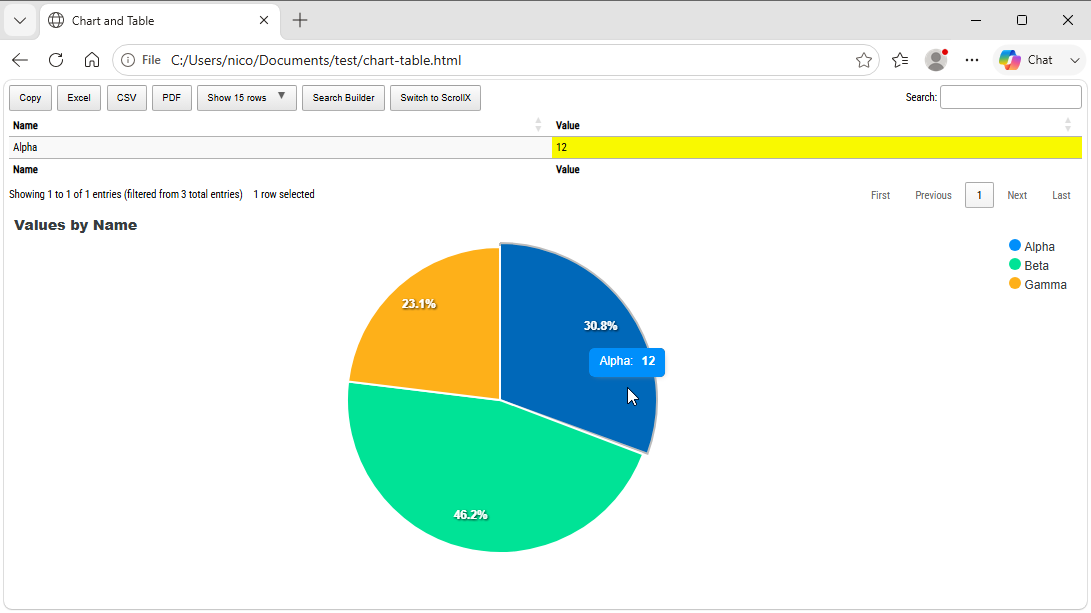

Rendered Graph-DataTable Correlation Example

Fig. 26 A chart and DataTable connected through an interactive correlation event.

You can also use New-TableEvent. It listens for a row selection in one table and filters another table.

Note

PSWriteHTML provides built-in events for chart-to-table, diagram-to-table, and table-to-table correlation through New-ChartEvent, New-DiagramEvent, and New-TableEvent. There is no built-in table-to-chart event. If you need to filter a chart based on table row selection, implement a custom JavaScript event handler using the -UseJavaScriptLinks parameter on New-HTML.

Performance Optimization for Enterprise Scaling

Generating reports with tens of thousands of records can impact initial creation time or browser responsiveness. Follow these tuning rules:

  1. Filter Data Upfront: Select required properties before passing objects into New-HTMLTable. Avoid passing raw, unfiltered WMI/CIM or Active Directory objects directly.

    # Bad: Passing raw AD objects with 100+ un-needed properties
$Users = Get-ADUser -Filter * -Properties *

# Good: Selecting target properties upfront
$Users = Get-ADUser -Filter * -Properties DisplayName, Mail | Select-Object SamAccountName, DisplayName, Mail

  2. Balance Online vs. Offline Mode:

    • Use ``-Online`` for live internal dashboards where client web endpoints have internet access. Web dependencies (Bootstrap, DataTables, ApexCharts) pull from fast CDNs, keeping output file sizes below 50 KB.

    • Use ``-Offline`` when deploying reports into air-gapped corporate subnets. Note that offline asset bundling increases file size.

  3. Limit DataTables Page Lengths: Keep -PageLength 25 or -PageLength 50 on New-HTMLTable. Defaulting page lengths to All forces client browsers to render thousands of dynamic DOM elements concurrently, causing tab freezing.

Troubleshooting Common Pitfalls

Issue 1: Empty Tables or Missing InfoCards

  • Symptom: Page renders, but card sections or tables are completely blank.

  • Root Cause: Variable supplied to -DataTable, -Data, or -Number is null or unpopulated.

  • Solution: Add upfront data validation before building HTML containers:

    if ($null -eq $MyData -or $MyData.Count -eq 0) {
    Write-Warning "Data array empty. Rendering fallback card."
    $MyData = [PSCustomObject]@{ Status = "No Records Available"; Count = 0 }
}

Issue 2: IIS 404 or Access Denied During Dashboard Update

  • Symptom: Scheduled task fails to overwrite index.html in C:\inetpub\wwwroot\.

  • Root Cause: The service account executing the PowerShell scheduled task lacks file Modify/Write permissions.

  • Solution: Grant full folder permissions on the target web root to the execution user account or NT AUTHORITY\SYSTEM.

Issue 3: Missing Icons in Air-Gapped Environments

  • Symptom: FontAwesome icons or InfoCard symbols display as hollow square glyphs on internal servers.

  • Root Cause: Report was generated with -Online, but client browsers cannot reach CDN endpoints.

  • Solution: Pass -Offline to New-HTML to bundle static local assets into the target path.

Diagnostic Checklist

Verify this checklist when diagnosing reporting pipelines:

[ ] 1. Is PSWriteHTML up to date on the build host? (Update-Module PSWriteHTML -Force)
[ ] 2. Does the target IIS folder permit Write actions for the Scheduled Task user?
[ ] 3. Are layout density settings (-Density) applied to appropriate section levels?
[ ] 4. Is the browser refresh meta header present for real-time NOC dashboards?
[ ] 5. Are script blocks and curly braces balanced across all nested sections?
[ ] 6. If emailing alerts: Is Email-HTML used instead of New-HTML?
