Chapter 8: Custom Styling, CSS, and Themes

Styling Overview 

While PSWriteHTML ships with clean, modern styling out of the box, enterprise environments often require matching corporate design standards, applying dark modes, or injecting custom typography and custom headers.

This chapter details how to inject custom CSS, apply custom typography, use FontAwesome icons, and override component styling directly using PowerShell DSL parameters.

Document-Level Theme Configuration 

The root New-HTML cmdlet provides the document container for component-level styling and custom CSS. Header colors are configured on sections or through the corresponding style cmdlets.

Built-in Themes & Header Colors 

You can alter section colors directly with supported New-HTMLSection parameters:

``-HeaderBackGroundColor``: Sets the background color of a section header (Hex, RGB, or standard CSS color names).
``-HeaderTextColor``: Controls the font color of a section header.
``-BackgroundColor``: Sets the background color of a section (Hex, RGB, or standard CSS color names).

Basic Color Override Example 

New-HTML -TitleText "Corporate Security Audit" -FilePath "Audit.html" -ShowHTML {

    New-HTMLTab -Name "Overview" {
        New-HTMLSection -HeaderText "Executive Summary" `
                       -HeaderBackGroundColor "#309135" `
                       -HeaderTextColor "#e01965" -BackgroundColor "lightyellow" {
            New-HTMLPanel {
                New-HTMLText -Color Amazon -Text "All perimeter checks passed corporate baseline guidelines."
            }
        }
    }
}

Custom CSS Injection (`Add-HTMLStyle`)

For fine-grained visual control, PSWriteHTML uses the Add-HTMLStyle function allows you to add CSS styles to HTML documents in various ways such as inline styles, external stylesheets,and content from files or strings.

Injecting Raw CSS 

Pass custom CSS rules to Add-HTMLStyle -Placement Header -Content to override fonts, table borders, panel padding, or background gradients across the entire page:

# Define custom CSS rules for the entire document
$CustomStyles = @"
    body {
        font-family: 'Segoe UI', Tahoma, Geneva, Verdana, sans-serif;
        background-color: #f4f6f9;
    }
    .card {
        border-radius: 8px !important;
        box-shadow: 0 4px 6px rgba(0,0,0,0.1);
    }
    h1, h2, h3 {
        color: #1a202c;
    }
"@

New-HTML -TitleText "Custom Styled Report" -FilePath "CustomCSS.html" -Show {
    Add-HTMLStyle -Placement Header -Content $CustomStyles

    New-HTMLTab -Name "Dashboard" {
        New-HTMLSection -HeaderText "Custom UI Styling" {
            New-HTMLPanel {
                New-HTMLText -Text "This panel features custom rounded corners and subtle dropshadows."
            }
        }
    }
}

Component-Level Styles 

Use Add-HTMLStyle inside the script block passed to New-HTML to add CSS to the generated document:

New-HTML -TitleText "Scoped Styling" -FilePath "ScopedStyle.html" -Show {

    # Inject scoped CSS rule inside HTML head
    Add-HTMLStyle -Placement Header -Content @'
        .custom-highlight {
            background-color: #fff3cd;
            border-left: 5px solid #ffc107;
            padding: 15px;
            font-weight: bold;
        }
'@

    New-HTMLTab -Name "Audit" {
        New-HTMLSection -HeaderText "Notifications" {
            New-HTMLPanel {
                New-HTMLText -Text "<div class='custom-highlight'>Warning: 2 backup targets are approaching capacity.</div>"
            }
        }
    }
}

Icon Integration & Typography (`New-HTMLFontIcon`)

PSWriteHTML natively integrates FontAwesome icons in supported components, including tabs. Other layout elements can include an icon with New-HTMLFontIcon where appropriate. FontAwesome provides icons, not a general-purpose typography provider; custom fonts should be configured with CSS or component font parameters.

Using FontAwesome Icons 

Supported components expose dedicated icon parameters. The icon names below link to the corresponding Font Awesome icon gallery so you can browse and preview the available icons before using them:

``-IconSolid``: Solid-style icons (e.g., "server", "shield-alt", "database").
``-IconRegular``: Outline-style icons (e.g., "file-alt", "clock").
``-IconBrands``: Brand logos (e.g., "windows", "linux", "aws", "github").

Inline Icon Example 

New-HTMLTab -Name "Cloud Infrastructure" -IconBrands "aws" {
    New-HTMLSection -HeaderText "EC2 Instances" {
        New-HTMLPanel {
            New-HTMLFontIcon -IconSolid "server"
            New-HTMLText -Text "Region: us-east-1"
            New-HTMLText -Text "Active instance nodes in availability zone A."
        }
    }
}

Inserting a company logo 

To place a company logo at the far left of a tab label or navigation item, add a scoped CSS rule to the document and use the logo URL as the background-image of a ::before pseudo-element. This keeps the logo aligned with the label while preserving any existing icon or text. The complete example below demonstrates this technique with an external image URL.

Building Dark Mode & Corporate Theme Templates 

To enforce consistent corporate branding across all enterprise reports, wrap your standard New-HTML configuration into reusable PowerShell helper functions or script execution templates.

Enterprise Dark Theme Template 

The following complete script demonstrates how to combine custom CSS, section header colors, and FontAwesome icons into a cohesive dark-mode dashboard:

# 1. Define Corporate Dark Palette CSS
$DarkThemeCSS = @"
    body {
        background-color: #121212 !important;
        color: #e0e0e0 !important;
    }
    .card, .panel {
        background-color: #1e1e1e !important;
        border: 1px solid #333333 !important;
        color: #ffffff !important;
    }
    .table {
        color: #e0e0e0 !important;
        background-color: #1e1e1e !important;
    }
    .table-striped tbody tr:nth-of-type(odd) {
        background-color: #252525 !important;
    }
    .tabsWrapper > .tabsSlimmer > div[data-tabs="true"] > div:first-child::before {
        content: "";
        display: inline-block;
        width: 60px;
        height: 60px;
        margin-right: 8px;
        background-image: url("https://avatars.githubusercontent.com/u/15376314?s=60&v=4");
        background-size: cover;
        background-position: center;
        vertical-align: middle;
    }
"@

# 2. Collect System Sample Data
$Data = Get-Process | Select-Object -First 10 ID, ProcessName, CPU, WorkingSet

# 3. Generate Dark Mode Report
New-HTML -TitleText "Dark Mode Enterprise Report" `
        -FilePath "$env:USERPROFILE\Desktop\DarkReport.html" -Show {

    Add-HTMLStyle -Placement Header -Content $DarkThemeCSS

    New-HTMLTab -Name "SYSTEM METRICS" -IconSolid "chart-bar" {
        New-HTMLSection -HeaderText "Resource Monitoring" `
                        -HeaderBackGroundColor "#000000" `
                        -HeaderTextColor "#00E676" {
            New-HTMLPanel {
                New-HTMLText -Text "Top Processes"
                New-HTMLTable -DataTable $Data -Filtering
            }
        }
    }
}

This is the result:

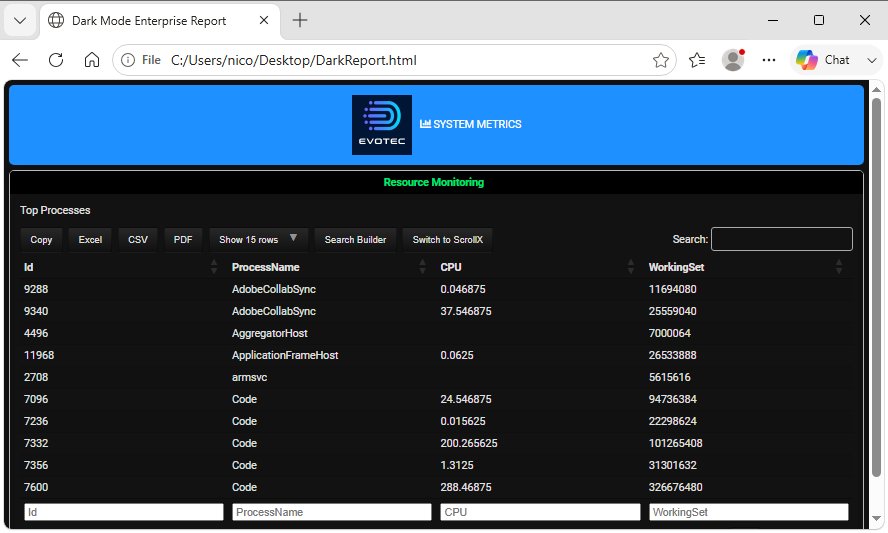

Rendered Dark Mode Example — Fig. 24 A dark-themed PSWriteHTML dashboard with custom colors and styles.

Styling Best Practices 

Use ``!important`` flags for CSS Overrides: PSWriteHTML loads third-party framework CSS (Bootstrap/DataTables). When writing custom CSS to override default component colors, add !important to ensure your rules take precedence.
Prefer Hex Codes over Named Colors: Use explicit 6-digit hex color codes (e.g., #1A365D) rather than named colors (blue, navy) to guarantee uniform rendering across different web browsers.
Keep Inline HTML Minimal: Use PowerShell DSL parameters (like New-HTMLTableCondition or section -HeaderBackGroundColor) whenever possible rather than embedding raw HTML tags directly inside string parameters.

Next Chapter: Chapter 9: Automated Reporting and Email Integration
