Chapter 2: Installation, Dependencies, and Setup

Installation Overview 

Before using PSWriteHTML to construct interactive reports, dashboards, or emails, you must properly set up the PowerShell environment and ensure all core and optional module dependencies are available.

PSWriteHTML is distributed via the PowerShell Gallery and supports cross-platform execution on Windows, macOS, and Linux.

Prerequisites & Requirements 

PSWriteHTML works across major PowerShell editions and operating systems:

PowerShell 5.1 (Windows PowerShell included with Windows 10/11 & Windows Server 2016+)
PowerShell 7.x+ (PowerShell Core — Windows, macOS, Linux)
Execution Policy: Must permit running locally installed scripts (e.g., RemoteSigned or Unrestricted).

Note

PowerShell 7.x is recommended for optimal performance, especially when processing large datasets or generating complex multi-tab reports with heavy DataTables integration.

This manual was written for version 1.41.0 and later of PSWriteHTML. For older versions, refer to the archived documentation on the GitHub repository.

Module Dependencies 

PSWriteHTML is designed as an ecosystem parent/child module. Depending on the visual components you use (charts, diagrams, color palettes), PSWriteHTML automatically utilizes or suggests complementary modules developed by Evotec:

Primary Dependencies 

Module Name	Purpose / Functionality
PSSharedGoods	Core helper functions, file handling, and string manipulation.
PSWriteColor	Enhanced console output formatting during report generation.
Connectimo	Optional network visualizer integration for topology diagrams.

Warning

When installing PSWriteHTML via Install-Module, PowerShell automatically resolves and installs required dependencies like PSSharedGoods. If installing manually in an isolated/air-gapped environment, you must copy these dependency modules manually.

Installation Methods 

Method 1: Installation from PowerShell Gallery (Recommended)

The quickest way to install PSWriteHTML for the current user or system-wide is using Install-Module.

For the Current User (No Admin Rights Required):

Install-Module -Name PSWriteHTML -Scope CurrentUser -Repository PSGallery -Force

System-Wide (Requires Administrator Privilege):

Install-Module -Name PSWriteHTML -Scope AllUsers -Repository PSGallery -Force

Method 2: Offline / Air-Gapped Installation 

If your target machine lacks direct internet access (e.g., secure production servers), download the module on an internet-connected machine and transfer it.

Save the module and dependencies to a local folder:

Save-Module -Name PSWriteHTML -Path "C:\OfflineModules" -Repository PSGallery

Copy the folder to the target machine’s PowerShell module directory:
- Windows PowerShell 5.1: C:\Program Files\WindowsPowerShell\Modules\
- PowerShell 7 (All Users): C:\Program Files\PowerShell\7\Modules\
- PowerShell 7 (Current User): $HOME\Documents\PowerShell\Modules\
Verify the path is listed in environment variables:
```
$env:PSModulePath -split ';'
```

Method 3: Automated Scripting / CI/CD Pipeline 

For automated deployment pipelines (GitHub Actions, Azure DevOps, Jenkins), ensure the package provider is updated before installing:

# Trust PowerShell Gallery and install silently
Set-PSRepository -Name 'PSGallery' -InstallationPolicy Trusted
Install-Module -Name PSWriteHTML -Scope CurrentUser -Force -AllowClobber

Verifying the Installation 

After completing installation, verify that the module is imported correctly and inspect available cmdlets.

Check Installed Version:
```
Get-InstalledModule -Name PSWriteHTML
```
Import and Inspect Available Cmdlets:
```
Import-Module PSWriteHTML -Verbose
Get-Command -Module PSWriteHTML | Select-Object -First 10
```
Expected output includes core functions like ``New-HTML``, ``New-HTMLTab``, ``New-HTMLTable``, and ``New-HTMLChart``.

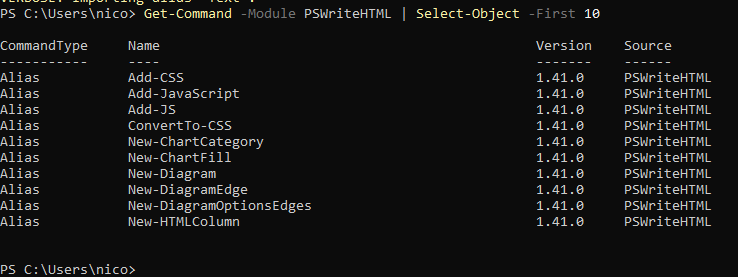

PSWriteHTML Verification Example — Fig. 4 PowerShell modules available after installing PSWriteHTML and its dependencies.

*Successful setup allows instant execution of DSL-based layout commands.*

If you should face any errors with the PowerShell execution policy that prevents script execution, you can normally resolve it by running the following command:

Set-ExecutionPolicy -ExecutionPolicy RemoteSigned -Scope CurrentUser

Updating & Uninstalling 

Updating to the Latest Version 

To update PSWriteHTML and pull in the latest web libraries (ApexCharts, DataTables, FontAwesome updates):

Update-Module -Name PSWriteHTML -Force

Uninstalling the Module 

To remove PSWriteHTML and clean up the environment:

Remove-Module -Name PSWriteHTML -ErrorAction SilentlyContinue
Uninstall-Module -Name PSWriteHTML -AllVersions -Force

Importing the module 

As usual with PowerShell modules, before using the module you should import it with the following command:

Import-Module PSWriteHTML

But this is not mandatory because PowerShell 3.0+ supports module auto-loading: when you execute a command belonging to an installed module, PowerShell automatically imports the module, provided the module is in $env:PSModulePath and you’re using a modern version of PowerShell. From now on, all examples in this manual will not explicitly import the module at the beginning of the script.

On the other hand, if you want to use the module in a script, it is recommended to import it explicitly at the beginning of the script, so that:

makes the script’s dependency obvious
causes a failure immediately if PSWriteHTML cannot be loaded
makes troubleshooting easier

Troubleshooting Common Setup Issues 

Issue: Script Execution Disabled

Error: ...cannot be loaded because running scripts is disabled on this system.
Solution: Run Set-ExecutionPolicy -ExecutionPolicy RemoteSigned -Scope CurrentUser.

Issue: NuGet Provider Prompt

Error: NuGet provider is required to continue...
Solution: Force NuGet provider installation with Install-PackageProvider -Name NuGet -MinimumVersion 2.8.5.201 -Force.

Issue: Dependency Conflict

Error: Multiple versions of PSSharedGoods loaded.
Solution: Remove older module versions using Uninstall-Module PSSharedGoods -AllVersions and re-import PSWriteHTML.

Next Chapter: Chapter 3: Basic HTML Structure and Document Flow
